Description

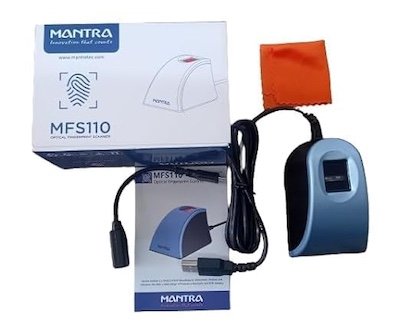

Mantra MFS100 L1 USB Fingerprint Biometric Scanner
| Model Name/No. |
MFS110 L1
|
| Operating System |
Windows, Android, Linux
|
| Connectivity Type |
Wired
|
| Operating Temperature |
0 to 50 DegreeC
|
| Cable Length |
1.5 m
|
| Dimensions |
61(L) x 91(W) x 54(H) mm
|
| IP Rating |
IP65
|

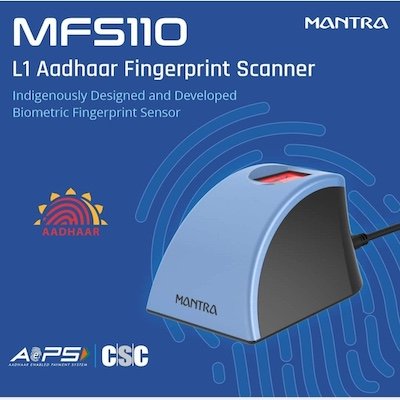

Mantra MFS110 L1 STQC UIDAI Certified FingerPrint Scanner
| Fingerprint Sensor Type | Optical Sensor |
| Spatial Resolution | 500 DPI +/- 2% |
| Platen Area | 16.0 mm x 19.0 mm |
| Sensing Area | 13.0 mm x 16.5 mm |
| Image Size | 256 x 328 Pixels |
| Maximum Acquisition time (Placement to Template) | < 2 sec |
| Approx. Dimension (L x W x H) | 61(L) x 91(W) x 54(H) mm |
| Approx. Weight | 0.140 kg |
| Capture mode | Auto capture with built-in quality check (incorporates NIST quality considerations) |
| Crypto Operation | Hardware base RSA2048 Key Generation, AES-GCM-256, SHA-256, TRNG support |
| Interface | USB 2.0 A Type (normal). Also available USB C Type and micro-USB |
| Operating Temperature | 0 to 50 °C |
| Humidity | < 90% RH, Non-condensing |
| Certification | RoHS, EN/IEC 62368-1, IS 13252 (Part 1), CE, FCC Part 15B, FBI PIV , STQC |
The Mantra MFS110 is an L1 biometric device and it is better than traditional devices in its class, delivering crypto operation with secure memory and precise biometric matching, making it perfect for ID verification and IT security. Our L1 fingerprint reader is a secure, rugged fingerprint scanner that ensures consistent image quality and precise results. This L1 fingerprint scanner is designed for many biometric-based identification applications. It is certified as FBI PIV-071006 as a compliant fingerprint scanner. This device has IP54 certification, which indicates that it is protected from dust and splashing water.
The L1 scanner is based on optical technology, which assures high-quality fingerprint scanning even when dusty, dirty, or rough fingers are scanned. developed for law enforcement, IT security, border administration, and national ID programs. Its advanced cryptography and ergonomic design make it an excellent performing and secure L1 biometric device for field operations.
